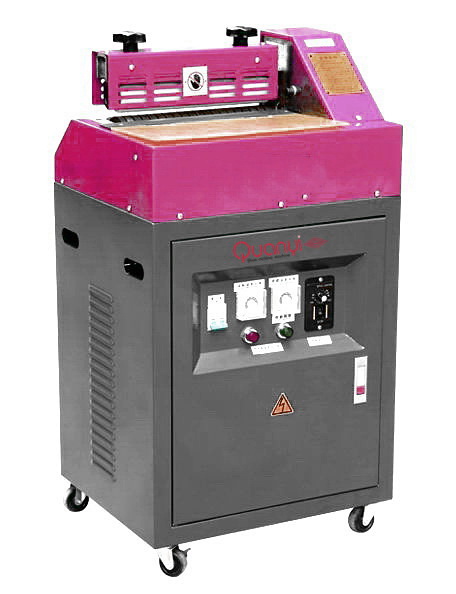

PURPOSE
Suitable for laminating minimum 0.5m/m surface,such as: shoe, leather product, stationery, paper board box, and sports equipment.

FEATURES
Adjustable wheel seat and pressure contribute to equal adhesive applying on any kinds of materials with any kinds of surfaces.
Teflon treated hot melt adhensive through features easy adhensive replacement, the temperature can be adjusted according to characteristics of the hot melt adhensive. carbonization of the hot melt adhensive can be effectively prevented.
The machine is quipped with thermal protector for the motor. the exhaust is also equipped for discharging odor. the motor serving as the drive unit for operation is with frequency continuous variable speed control for stepless speed control.
Emergency stop button is equipped on the machine for sending back the material in case of pressing the button for motor reverse running.thus safety can be achieved.

SPECICATION

DIMENSION: 570*500*940MM

WORKABLE COATING RANGE：30CM

WEIGHT：70KG

POWER: 1.7KW

VOLTAGE：220V
