PURPOSE

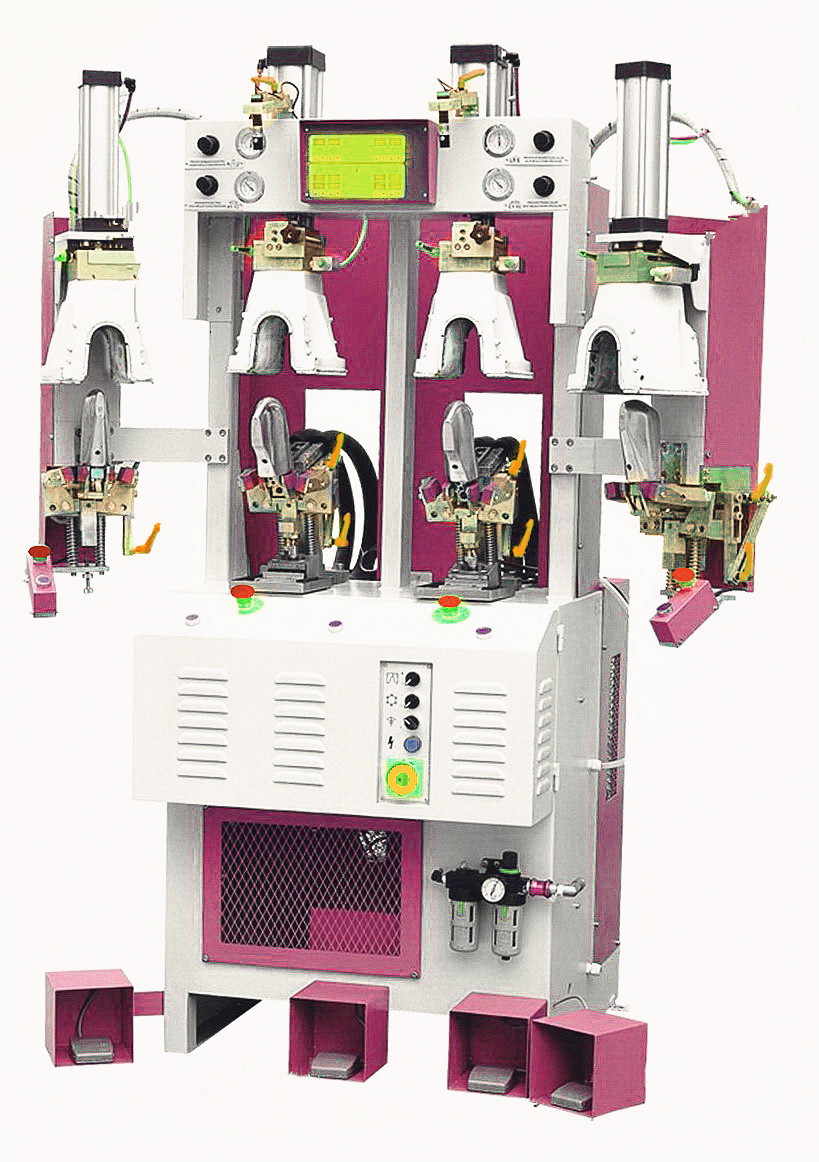

It is applicable to different kinds of shoe counters for hot and cold shaping.

FEATURES

1. It is with two cooling system and two heating system, has adjustable pull-down grip jaw.

2. Using air-bag type structure does not need to custom plastic mold, save costs

3. The molds loading and unloading quick and easy.

4. The mold can be customized to obtain a more perfect shape effect.

5. The mold can be tilted, more convenient operation.

6. The adjustable clamp will achieve 100% jointing of vamp with last.

7. Use of environmentally friendly refrigeration system, cooling speed, freezing temperatures up to-30 °C.

8. Electronically controlled heating system, temperature control is more precise, the maximum heating temperature of up to200 °C.

9. After moulding, the liner, the toe puffs and vamp are closely jointed, without crinkling, deformation and without bubbling.

10. Micro-electronic processing system.

SPECIFICATION

DIMENSIONS: 930X1520X1980MM

WEIGHT: 600KG

VOLTAGE: 220V/50HZ

POWER: 2.7KW

AIR PRESSURE: 0.6MPA

CAPACITY: 1300PAIRS/8H
