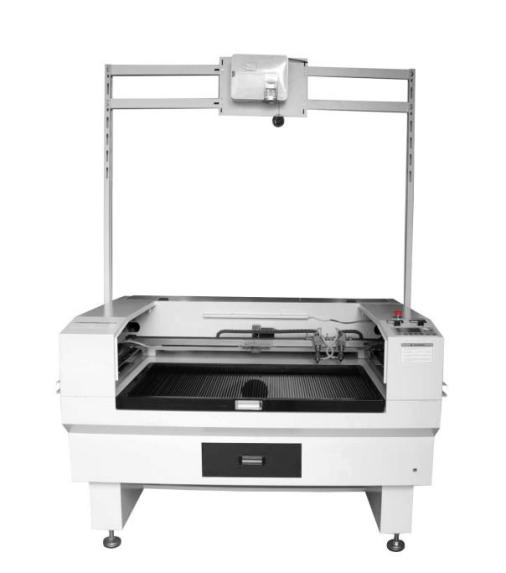

PROJECTION TYPE LASER CUTTING MACHINE( HEAD QUANTITY OPTIONAL)

BRAND:
NO.:   QY1810

QTY:
- +
()+1
DETAILS Inquiry

PURPOSE

This product is suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, crystal, jade, bamboo products, nonmetallic material in cutting work

FEATURES

Combined the production operation and give full play to the motion control performance and the effect of laser processing, the unique interactive design,.It can be free switch between four laser and single.It also can work offline, cutting effect is uniform but the processing efficiency.

Low multi-document function:

equipment can store as many as 128 working documents, in the case of without the computer, the user can select files in the engraving machine, the mass production of 128 different products.

The signal does not change during long distance transmission, the anti-interference ability is strong, and can be easily connected with the user production site.

SPECICATION

LASER POWER: 30-150W

THE LEAST FORMED WORDS: THE CHINESE CHARACTER 2X2MM LETTER 1X1MM

RESOLUTION: LESS THAN 4000DPI

POWER: AC220 + + + 10%, 50HZ

LOCATION ACCURACY: < 0.01 MM

LINE NUMBER: 90 LINES

TOTAL POWER: < 1600W

WORKING TEMPERATURE: 0 ℃ - 45 ℃

WORKING HUMIDITY: 5%-95% (NON-CONDENSATE)

SUPPORT GRAPHICS FORMAT: BMP, GIF, JPGE, PCX, TGA, TIFF, PLT, CDR, DMG, DXF.
